Malware composition
(6f4571882606ee838590243876609effc6a78455fde3a908ed9f9220758c8eb9)
(14ef1c24de1b23249950db4e88f66987450cafff21a2be1920e26bf75c52d53e) Malware analysis
wechat.exe is a .NET application that contains a Base64 string in the main() function, which is converted to UTF-8 and executed as a PowerShell script.
Figure 1. dnSpy main() function

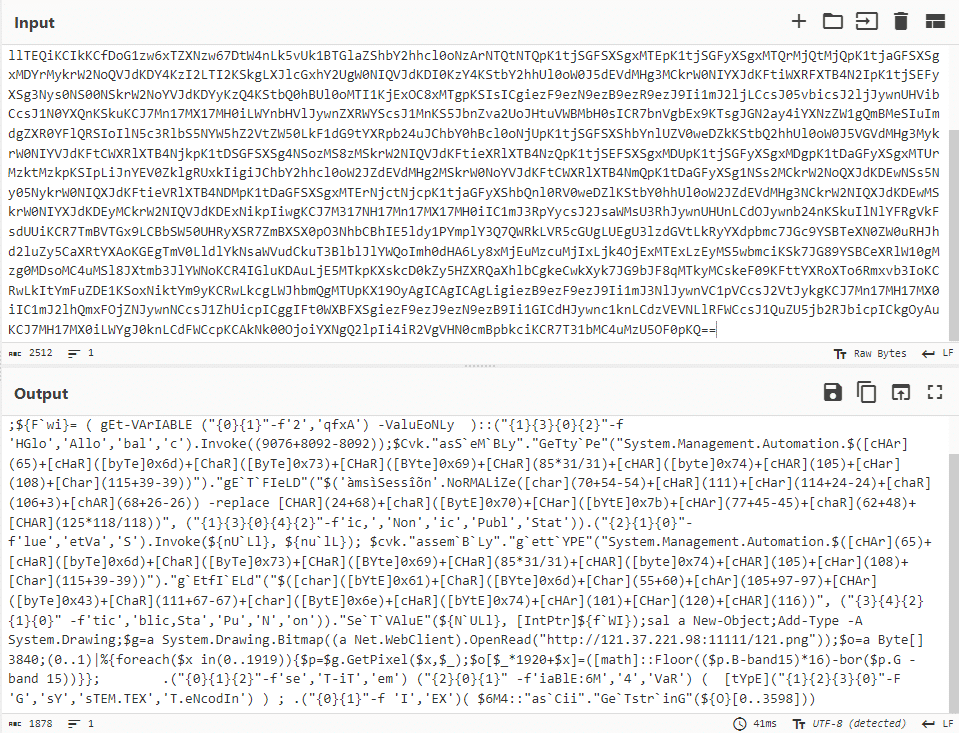

Figure 2. Decoded Base64 string
The execution of the Powershell script results in downloading a PNG image file http[:]//121.37.221[.]98:11111/121.png and using the System.Drawing.Bitmap library to extract a byte array from the PNG image channels (blue and breen) with the formula:
% foreach($x in(0..1919)){$p=$g.GetPixel($x,$_);$o[$_*1920+$x]=([math]::Floor(($p.B-band15)*16)-bor($p.G -band 15))}
Figure 3. Execution flow traced with Any.run
Figure 4. Thumbnail of the PNG image containing hidden bytes

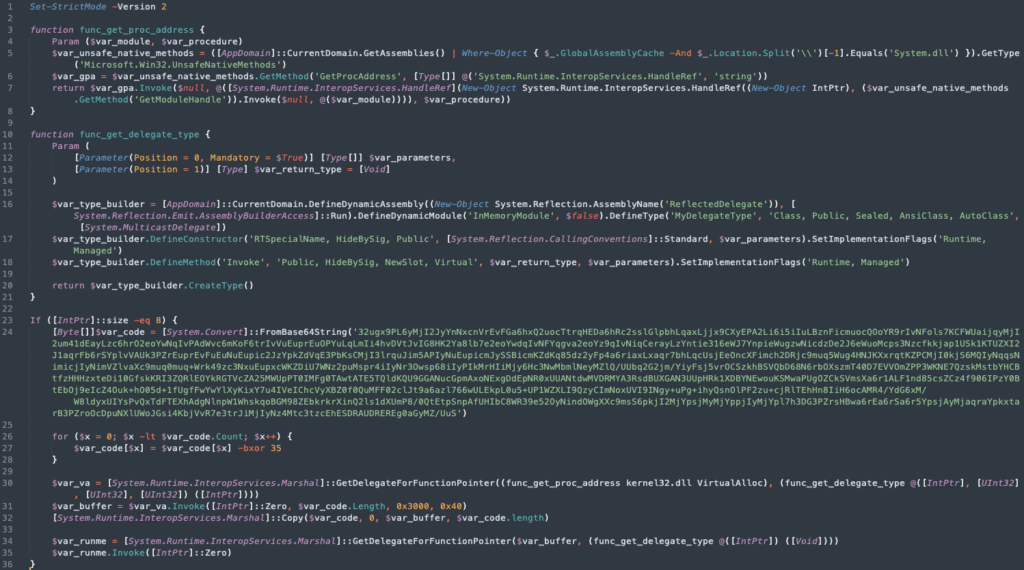

The resulting byte array is converted into a second-stage PowerShell script, which contains another Base64 string that is also XOR-encoded.
Figure 5. Thumbnail of the image containing the bytes read by the script
By decoding the XOR-encoded Base64 string, it is possible to extract both a User-Agent string and a C2 IP address used by the malware:
User-Agent: Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.0; WOW64; Trident/5.0)
121.37.221[.]98

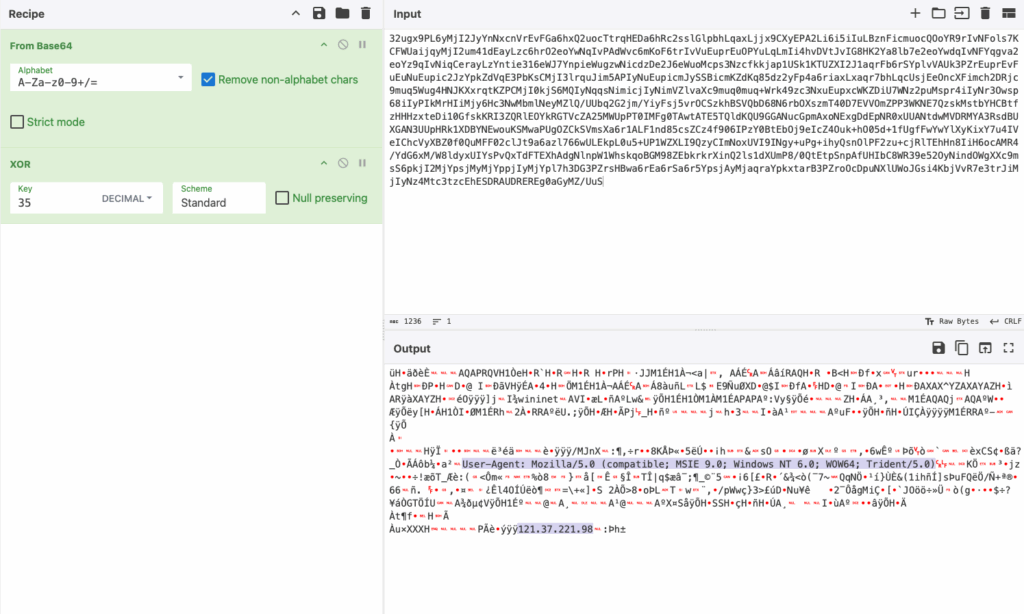

Figure 6. Decoding the XORed Base64 string
Indicators of Compromise
6f4571882606ee838590243876609effc6a78455fde3a908ed9f9220758c8eb9(SHA256)14ef1c24de1b23249950db4e88f66987450cafff21a2be1920e26bf75c52d53e(SHA256)http[:]//121.37.221[.]98:11111/121.png121.37.221[.]98User-Agent: Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.0; WOW64; Trident/5.0)
